ERW Steel Pipe

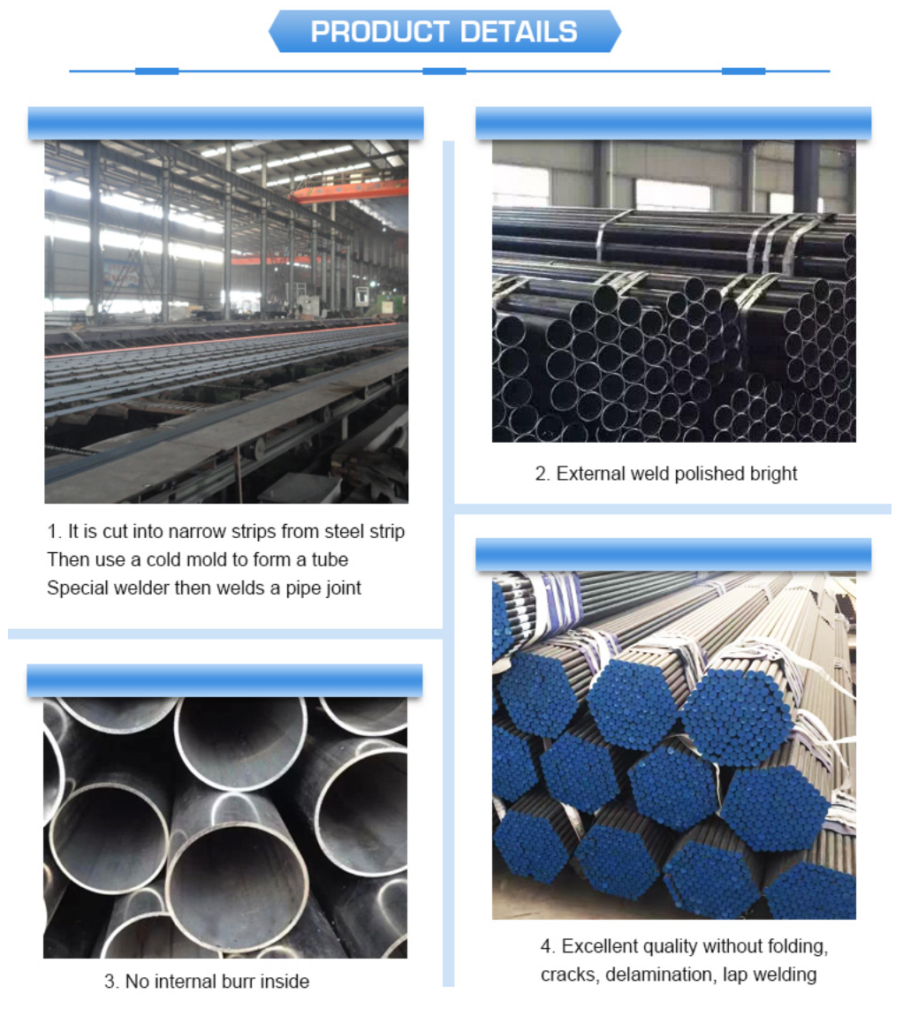

Product Details of ERW steel pipe

Pipe End: square ends (straight cut, saw cut, and torch cut). or beveled for welding, beveled,

Surface: Lightly oiled, Hot dip galvanized, Electro galvanized, Black, Bare, Varnish coating/Anti rust oil, Protective Coatings (Coal Tar Epoxy,  Fusion Bond Epoxy, 3-layers PE)

Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.

Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test,  Hardness Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, NDT TEST ( ET TEST, RT TEST, UT TEST)

For ERW Line Pipe For ERW Casing
For ERW Structure Tube
For High pressure and high temperature

   Size
Out Diameter:21.3-660mm
Wall Thickness: 1.0-20mm
Length : 3-12m, or according to customer’s requirement
End : Plain End, Beveled End, Treaded

   Standard

ASTM 5L, ASTM A53, ASTM A178, ASTM A500/501, ASTM A691, ASTM A252, ASTM A672, EN 10217
Steel Grade:
API 5L: PSL1/PSL2  Gr.A, Gr.B, X42, X46, X52, X56, X60, X65, X70
ASTM A53: GR.A, GR.B,ASTM A500 JIS G3466
EN: S275, S275JR, S355JRH, S355J2H,EN10219-1 ,EN10217-1
GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360-L555
