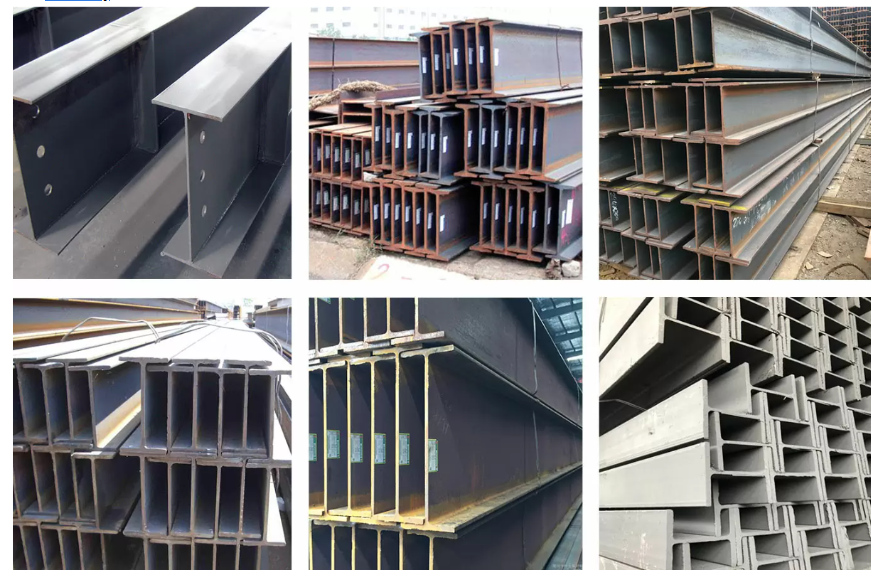

H-beam / I-beam / W-beam

There are many product specifications of H-beams, and the classification methods are as follows.
(1) According to the flange width of the product, it is divided into wide flange, medium flange and narrow flange H-beams. The flange width B of wide flange and medium flange H-beam is greater than or equal to the web height H. The flange width B of narrow flange H-beam is approximately equal to one-half of the web height H. The flange width of narrow flange H-beam is approximately equal to the web height H.
(2) According to the product use, it is divided into H-beam, H-beam column, H-beam pile, and very thick flange H-beam. Sometimes parallel-legged channels and parallel-flange T-beams are also included in the range of H-beams. Generally, narrow flange H-beam is used as beam material, and wide flange H-beam is used as column material, according to which there are beam H-beam and column H-beam.
(3) According to the production method, it is divided into welded H-beam and rolled H-beam.
(4) According to the size specification, it is divided into large, medium and small size H-beams. Usually, the products with web height H above 700mm are called large, 300-700mm are called medium, and those less than 300mm are called small. By the end of 1990, the world’s largest H-beam web height of 1200mm and flange width of 530mm.
