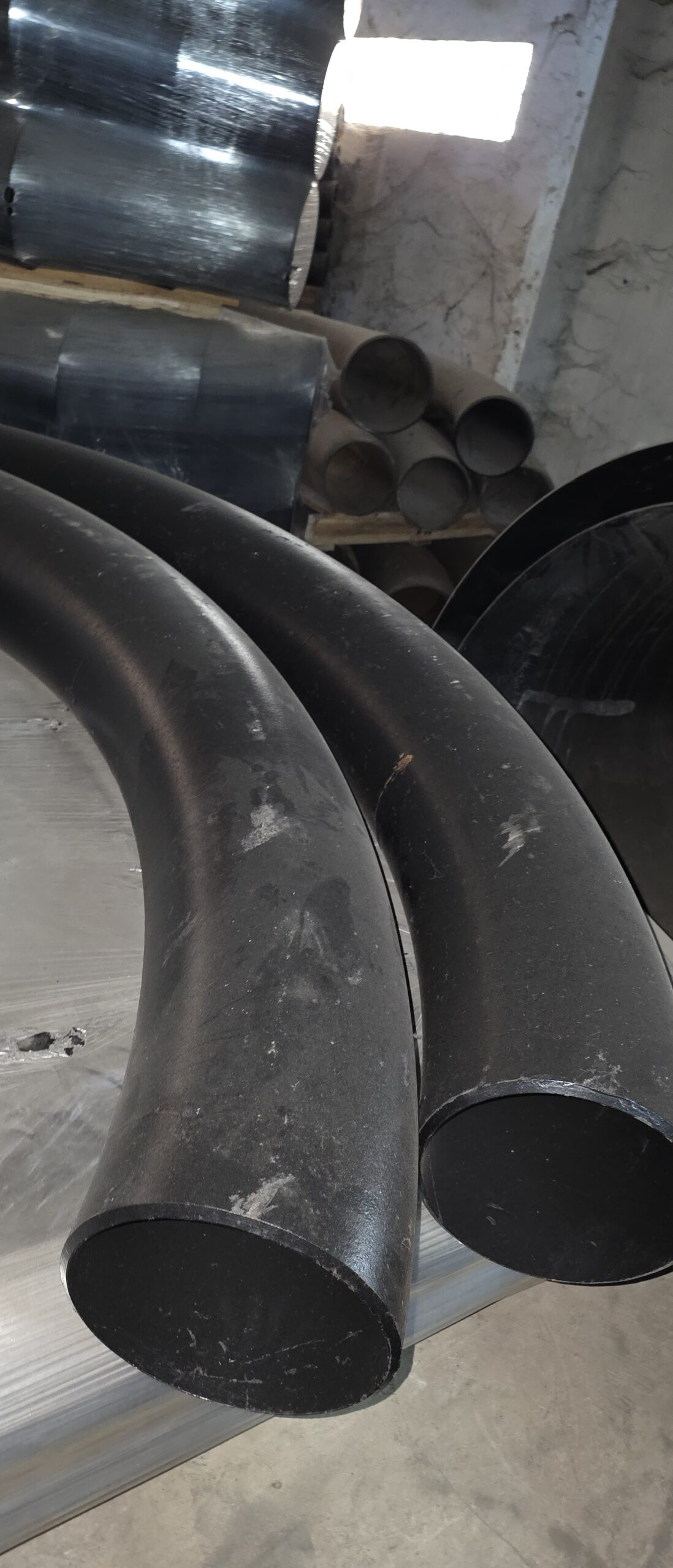

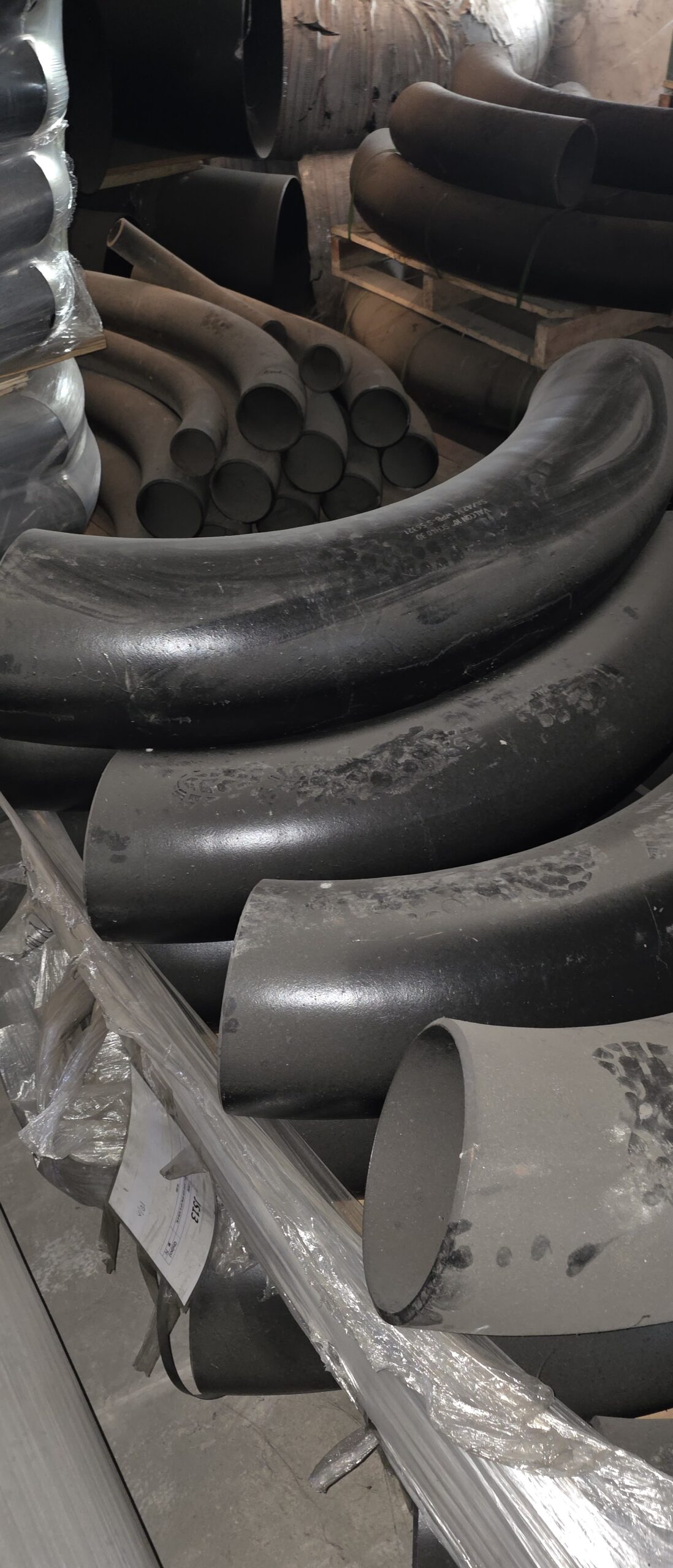

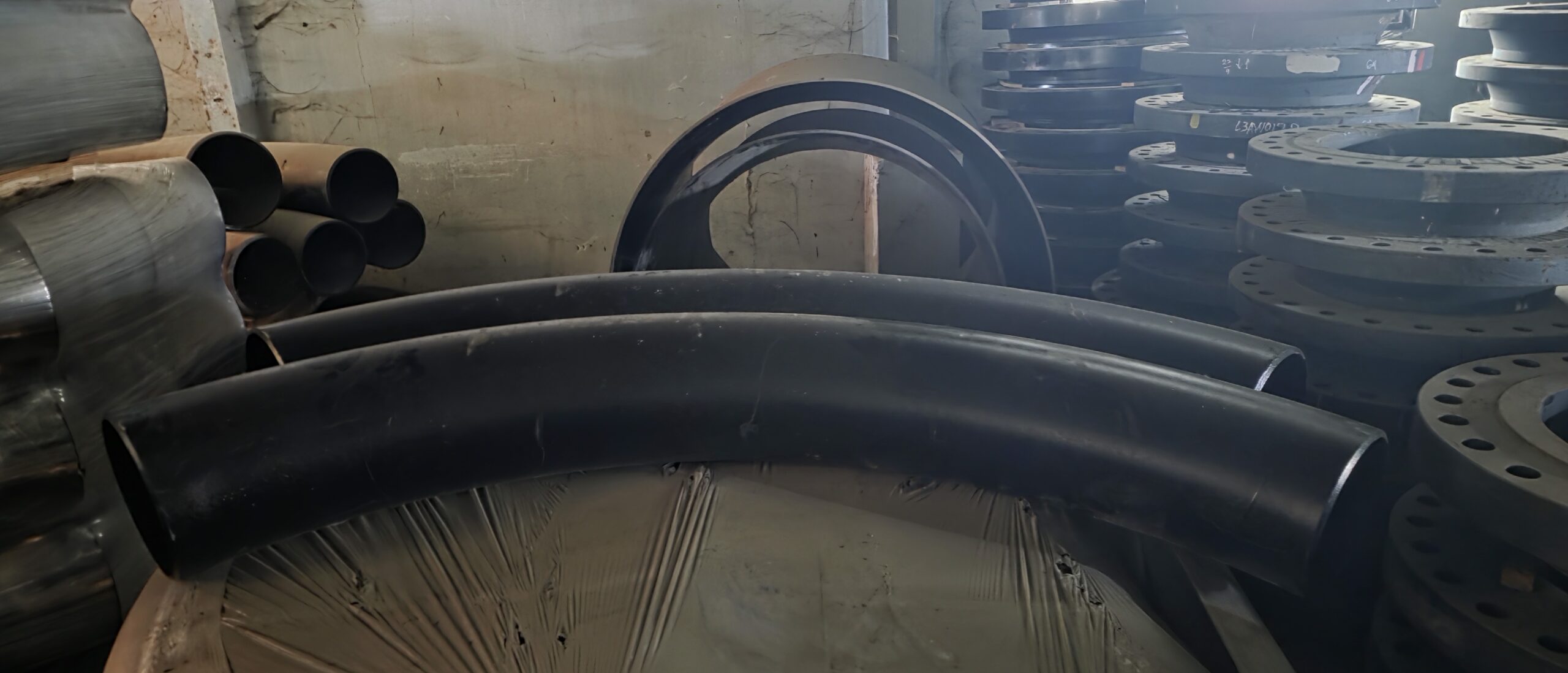

Elbow Bend or Pipe Elbow Bend is a bending pipe that used to change the pipeline direction. It is similar to pipe elbow, but elbow bend is longer usually manufactured for the specific needs. Common use radius bend in 3D bend and 5D bend
|
Name
|
Detail
|
|---|---|
|
Size
|
1/2'' to 60''. DN15 to DN1500
|
|
Radius range: R=2D, 2.5D, 3D bend, 5D bend, 6D, 8D bend
|
|
|
Standards
|
AISI B16.49, MSS-SP-75
|
|
Materials:
|
Carbon Steel --- PI 5L Grade B, X42, X46, X52, X56, X60, X65, X70, X80 PSL1 & PSL2 & SOUR
|
|
Stainless Steel --- ASTM A403 304/304L, 316/316L
|
|
|
Bend Angle:
|
45° / 60° / 90° and customized
|
|
Surface coatings:
|
Black paint, galvanized, epoxy coated, 3PE, FBE
|
|
Packing:
|
Packed in Wood Cabins/Wood Tray
|
| Pipe Diameter (O.D) | Min. 1/2″ – 60″ / DN15 – DN1500 |
| Pipe Bend Radius | R = 1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Straight Length (L) | 300 mm and 1500 mm |
| Pipe Bend Angle | 0° – 180° |
| Standards | DIN, ASTM, ASME, MSS, EN, JIS ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43 DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 EN: EN10253-1, EN10253-2 |
| Pipe Bend Standards | ASTM A403 / ASME SA403 – Wrought Austenitic Stainless Steel Pipe Fittings ASME B16.9 – Factory-made Wrought Fittings Butt Welding ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns MSS SP-43 – Wrought and Fabricated Buttwelding Fittings ASME B16.49 – Factory-made Carbon Steel Pipe Bends |
| Material Grades | Carbon Steel, API 5L, ASTM A106 Gr.B, Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low Temperature Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy |
| Stainless Steel Hot Induction Bend | ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN 1.4306, DIN 1.4401, DIN 1.4404 |
| Carbon Steel Hot Induction Bend | ASTM A234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65, WPHY 70 |
| Alloy Steel Hot Induction Bend | ASTM / ASME A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91 |
| Nickel Alloy Hot Induction Bend | ASTM / ASME SB336 UNS 2200 (Nickel 200), UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8020 (Alloy 20), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600), UNS 6601 (Inconel 601), UNS 6625 (Inconel 625), UNS 10276 (Hastelloy C276) |
| Duplex & Super Duplex Hot Induction Bend | ASTM A815, ASME SA815 UNS S31803, S32205, UNS S32750, S32950, Werkstoff No. 1.4462 |

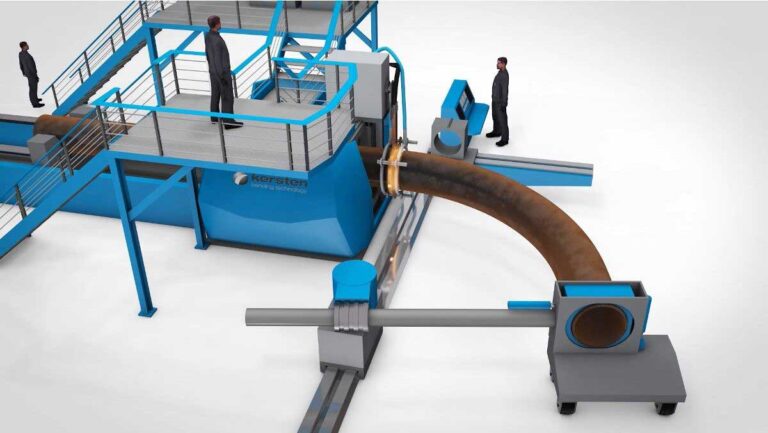

| Manufacturer of Induction Bend | Bending of single-length pipe spools in multiple radius (2D, 3D, 5D) Pre-fabrication of high-pressure piping systems Heat treatment (normalizing, stress relieving, tempering, water quenching) End preparation: weld end, plain end, tapering Grit blasting and painting Pickling and passivation Internal & external coating (FBE, PE, PP, concrete weight coating) |
For pricing, technical specifications, and availability of this product, please contact our sales team via email below. pipvalcon@gmail.com
