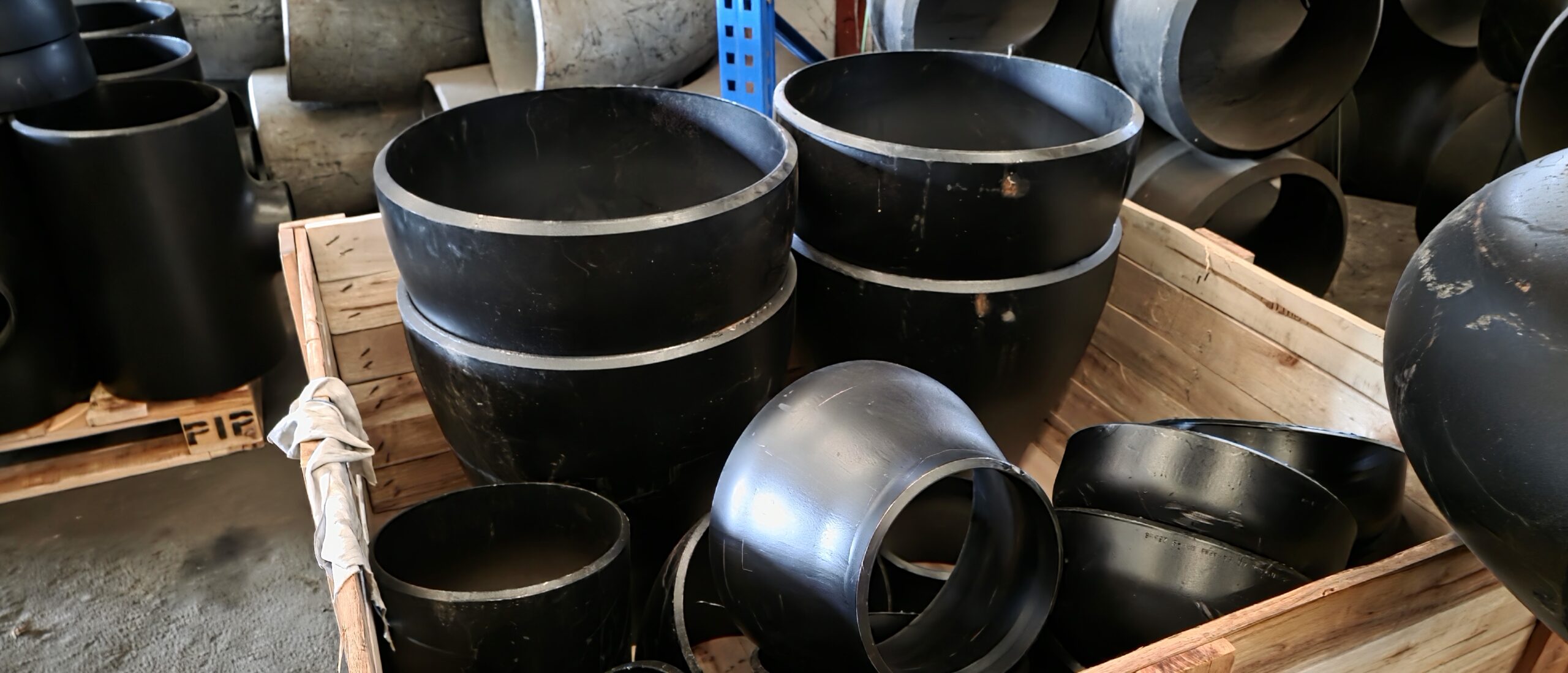

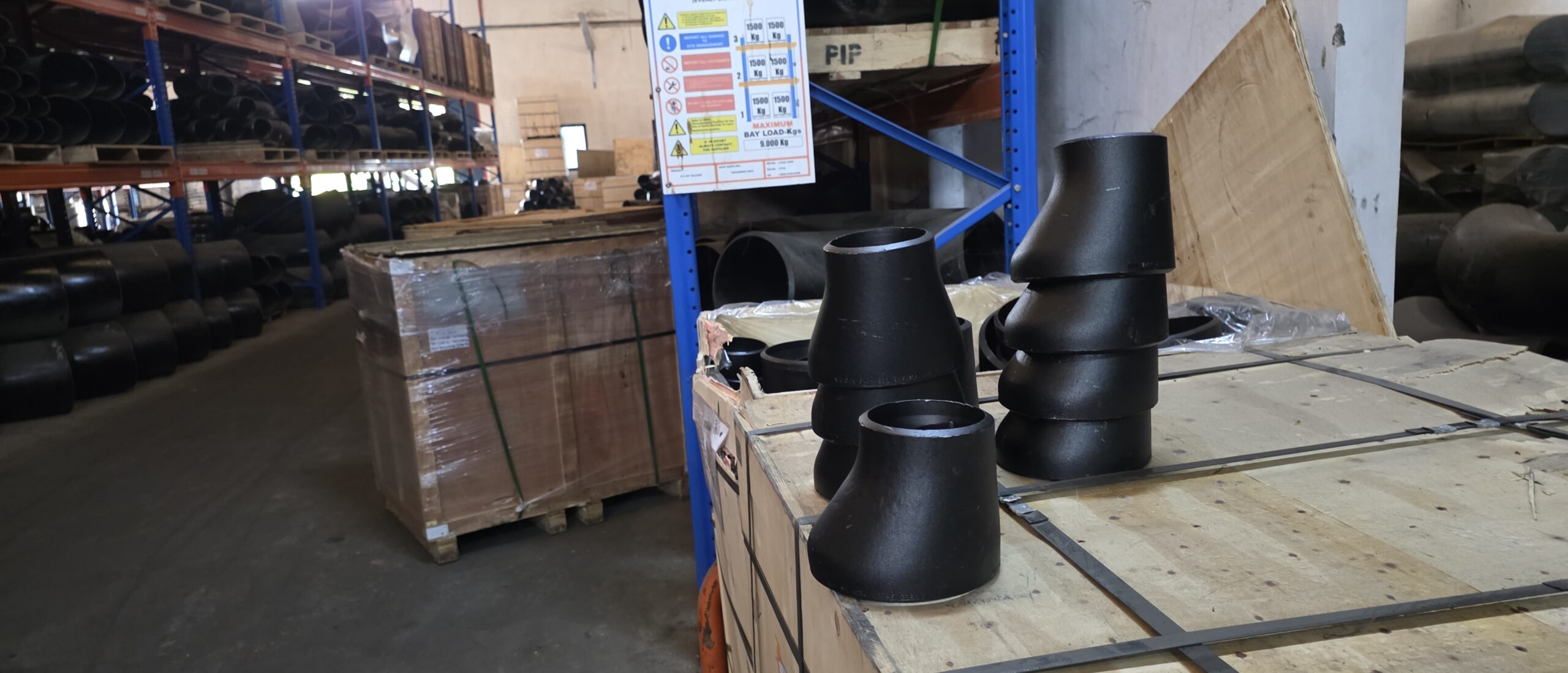

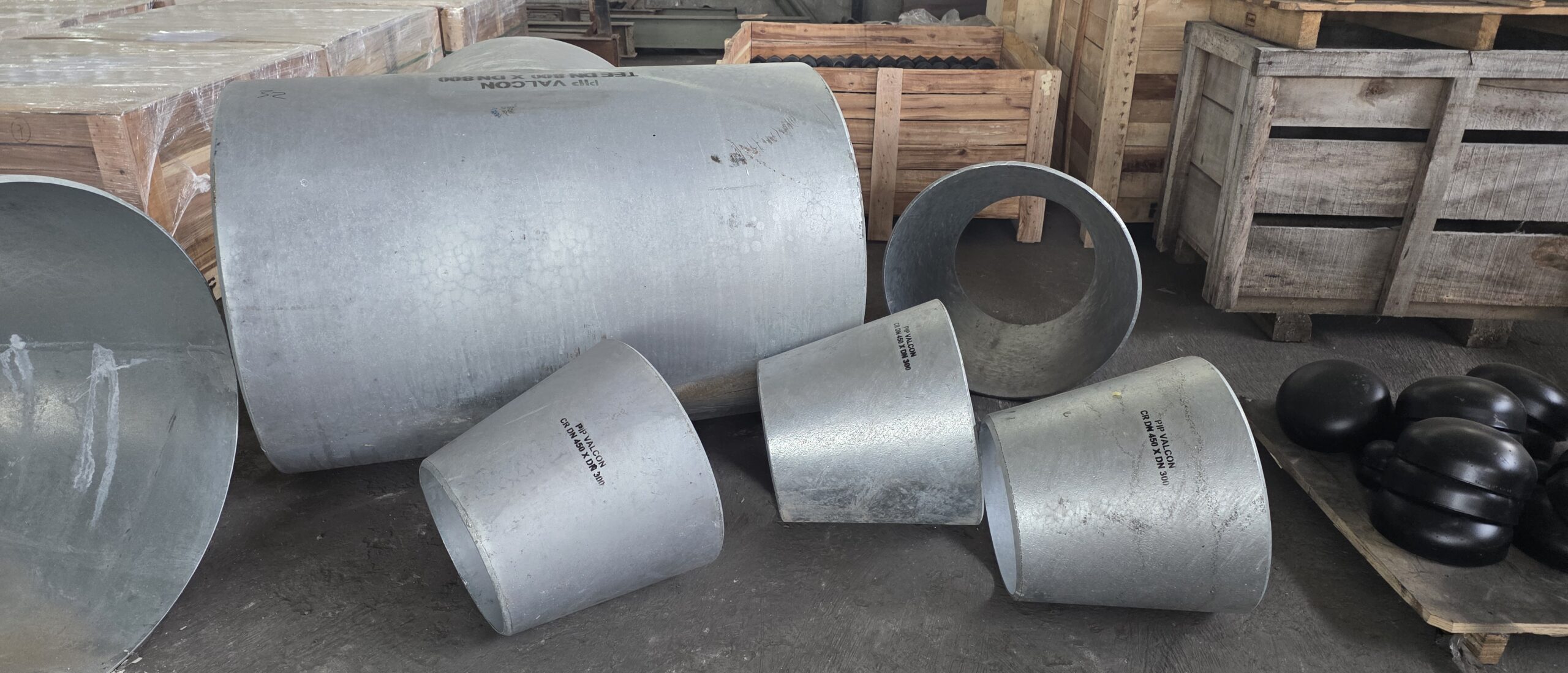

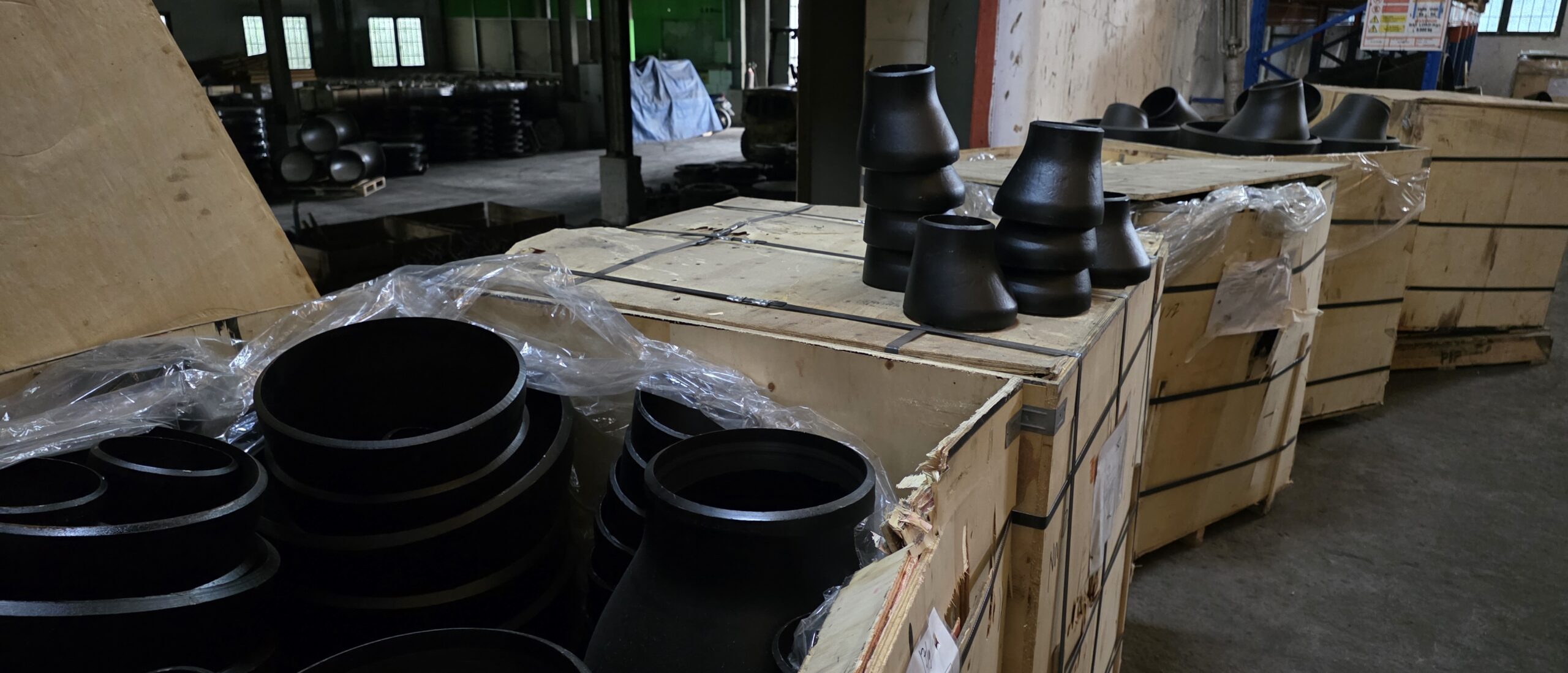

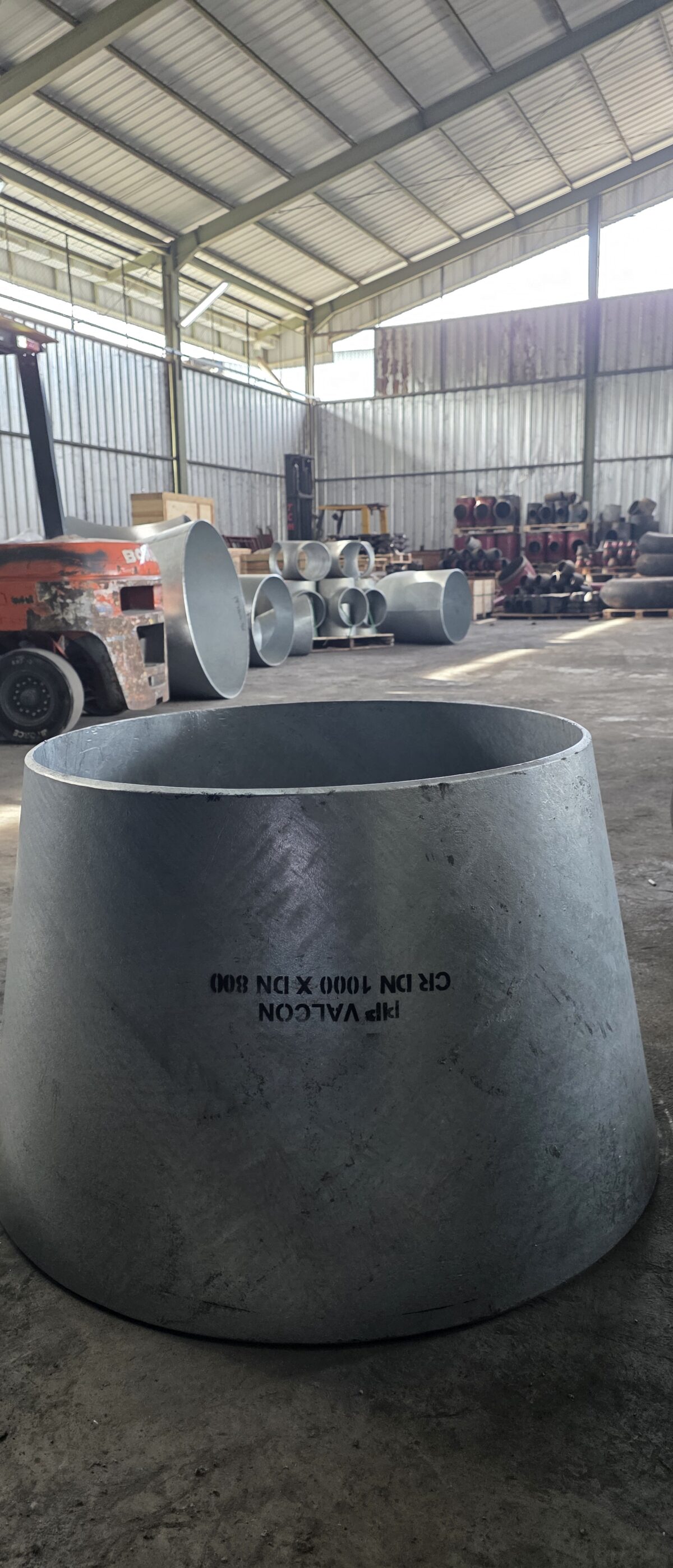

Reducers are components used in piping systems to transition from a larger pipe diameter to a smaller one, ensuring efficient, leak-free fluid flow. They feature beveled ends welded directly to pipes, offering high strength for high-pressure/temp environments. Types include concentric (centered alignment) and eccentric (offset alignment).
|
Name
|
Detail
|
|---|---|
|
Type
|
Concentric, Eccentric
|
|
Material:
|
Carbon Steel --- ASTM A234 WPB/WPC, ASTM A105/A106/A53/A283-D,
API 5l GR.B/A671-CC-70/A515-50/A135-A/A179-C
|
|
Stainless Steel --- ASTM 403 304/304L, 316/316L,316Ti,321,317L,310S
|
|
|
Alloy Steel --- ASTM 234 WP 1/5/9/11/12/22/91
|
|
|
Specification:
|
NPS from 1/2'' to 80''
|
|
Surface:
|
Light Oiling, Black Painting
|
|
Brands
|
VALCON (China), Benkan ( Japan / Thailand ) , TK ( Korea ) , Mega (Italy) , BKL (Japan / Thailand) , Erne ( Austria / Europe ) , ASK ( Japan / Thailand ), BW ( Taiwan ) , Tachen ( Taiwan) , Tectubi Raccordi (Italy ) , Kanzen ( Taiwan ) , Ulma ( Spain ) , JD ( Italy ) , TechnoForge ( Italy ), Viar ( Italy ) , Delcorte ( Italy )
|
Length of Reducers
The length of a Reducer is very short in relation to the diameter, so in some dimensions the transition from one to another diameter is very abruptly. For example, a reducer NPS 6 – NPS 2.1/2 has a length of 140 mm. On this short distance a pipeline will be reduced from 168.3 mm O.D. to 73 mm O.D. During the design phase of a new pipe system, a piping designer certainly must think about it.
An alternative for a smoother flow would be to apply multiple reducers like..
In the above example of designing a smoother flow, now the distance is approximately 573 mm if the NPS 6 pipe is reduced to NPS 2.1/2, and a smoother flow is guaranteed.
For pricing, technical specifications, and availability of this product, please contact our sales team via email below. sales@pipvalcon.co.idÂ
